Small Size UV254 Cod Bod Tss Analyser online Environmentally Friendly

Product Categories
Xi'an Desun Uniwill Electronic Technology Co., Ltd.
Contact Now

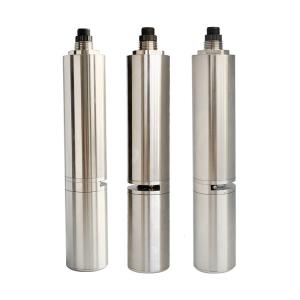

Small Size UV254 Cod Bod Tss Analyser online Environmentally Friendly

  • 1
  • 2
  • 3

Brand Name : Desun Uniwill

Model Number : DS-500

Place of Origin : China

MOQ : 0~100 pcs

Price : $1000.00 - $3000.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 0~1000 pcs

Delivery Time : 7~ 15 working days

Packaging Details : Carton packaging

Output signa : RS-485, MODBUS protocol

Range : BOD 1.5 to 410mg/l equiv KHP, COD 2.5 to 1000 mg/l equiv. KHP

Accuracy : 0.01mg/L COD

Temperature range : +5 ~ 45°C

IP Grade : IP68

Calibration : 1 or 2 point calibration

Power Supply : DC 12V +/-5%, current <50mA (when there is no cleaning brush)

Sensor Size : 54*325.5 mm

Cable length : Default 5 m

Housing Material : SS316L

Contact Now

Factory China UV254 COD /BOD / TSS Sensor Chemical Oxygen Demand Meter

Measuring principle


Many organic substances dissolved in water absorb ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm. COD sensors use two light sources, one 254nm ultraviolet light and one 550nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.

COD Sensor Feature

Digital sensor, RS-485 output, support MODBUS.

Can measure COD, BOD and temperature parameters.

No reagents, no pollution, more economical and environmentally friendly.

Small size and easy to install, water quality monitoring can be performed online.
It automatically compensates for turbidity interference and has excellent test performance.

Internal rotation cleaning brush for pipe self-cleaning and submersible self-cleaning

Technical parameters

Item

Parameters

Output signal

Support RS-485, MODBUS protocol

Range

TOC 1.5 to 410mg/l equiv KHP, COD 2.5 to 1000 mg/l equiv. KHP

Accuracy

0.01mg/L COD

Temperature range

+5 ~ 45°C

IP Grade

IP68

Maximum pressure

1 bar

Calibration

1 or 2 point COD calibration

Power Supply

DC 12V +/-5%, current <50mA (when there is no cleaning brush)

Sensor Size

54*325.5 mm

Cable length

5m (default)

Housing Material

SS316L

Small Size UV254 Cod Bod Tss Analyser online Environmentally Friendly
